Aim:-

A post office box and other necessary instruments are given to you. Take three appropriate ratios of the resistances in the two arms of Post Office Box and determine the values of two unknown resistances.

Now connect the unknown resistances in series and parallel respectively and verify the laws of series and parallel combinations of resistances.

PRINCIPLE :-

It works on the principle of balanced Wheatstone bridge.

APPARATUS :-

A Battery,

unknown resistance (Rx & Ry),

Post Office Box,

a galvanometer,

rheostat,

connecting wires

Post office box Apparatus

CONDITION  1 :-

Connect unknown resistance      Rx between C and D

Post office line diagram condition 1

Post office condition 1 Practical

 CONDITION 2 :-

Connect unknown resistance      Ry between C and D



Post office line diagram condition 2

Post office condition 2 practical

CONDITION 3 :-

Connect unknown resistance      Rx & Ry in SERIES between C and D

Post office series connection

Post office series connection practical

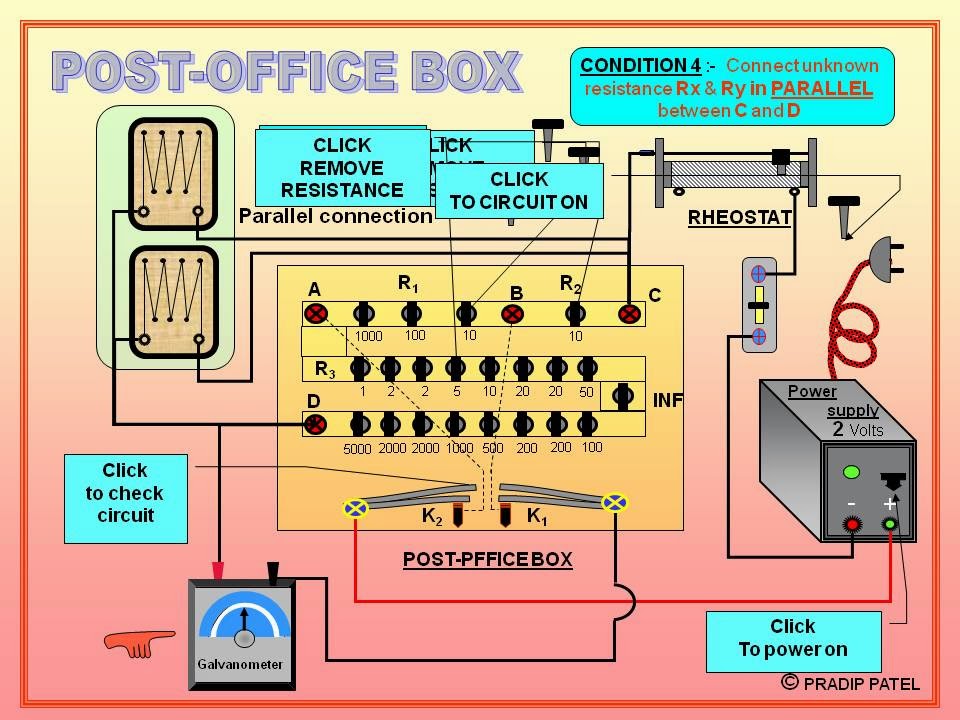

CONDITION 4 :-

Connect unknown resistance      Rx & Ry in PARALLEL between C and D

Post office parallel connection condition 4

Post office box parallel connection

Post office box observation table

Post office box calculations

Precautions

(1)   All plug keys of Post Office Box must be tight.

(2)    Contact points of K₁ and K₂ must be cleaned  with sand paper.

(3)    Galvanometer should be very sensitive.

(4)    Throughout the experiment  press key K₂(battery key) first and then key K₁(galvanometer key).

For more details view Video.
